100% customised LED backlight panel.

With our LED backlight panel LUXPANEL™, LumiSheet™ 🇨🇭 and Plexiled™ 🇪🇺, the customization goes to a higher level since you can decide the shape (triangle, square, circular), size (600×600 mm, 1200×600 mm, 2×2, 2×4…), backlight faces, flat panels, regulable, smart panels, dimmable, RGB, color…

Our backlit panel engraving technologies include Progressive Line and 3D v-cutting for LUXPANEL™, while 2D v-cutting applies to our other two equally attractive panel models. All of them are made in optical methacrylate, achieving an optimal distribution of light and high brightness, without surface heat and very low power consumption.

Complete the range, DOTPANEL with the LGP Dotting technique (Light Guide Panel), with a minimum thickness and great versatility.

Patented product. More info

More possibilities with our led backlight panel Lumisheet and Luxpanel.

RGB LED panel
Shapes
Adjustable CCT
CRI100
5V / 12V / 24V
Logos
Engravings
Lamps
Retail
Architecture
Decoration
Interiorism
Advertising panels
Ceiling panel light
Flexible LED panel
Plexiled
LED kitchen panels
IP65 LED panels

Product lighting
Surface LED panel
Stores
Walls
Signals
Ceilings
Furniture
Totems
LED wall light panel
LED ceiling panels
Display panels
Backlight
Artificial false window led panel
Daylight LED panel
LED flat panel light

Progressive Line and v-cutting 2D / 3D Technology

First, our led backlight panel LumiSheet ™ 🇨🇭, LUXPANEL ™ and Plexiled ™ 🇪🇺 make use of Progressive Line and 2D/3D v-cutting engraving technology, which is adapted according to the size of the panel to ensure light homogeneity.

Our limits do not stop here. Actilum™ lux panel technology also allows us to make personalized engravings, from logos, illustrations, text ... In short, your custom LED panel.

Your LED panel,
tailor-made.

We are delighted to have collaborated with professionals from the beauty, fashion, luxury retail and technology industries within the last decade. Working directly with the brands, as well as with light and interior designers, architects or shopfitters. We are your technological partner.

And with the most demanding external certifications, such as UL , Rohs , Ecovadis , ISO 9001 , ISO 14001 and CE.

Zone engraving
in your LED panel

We illuminate only the part you need with our LGP Dotting technology. Simple: we make the engraving where you want all eyes to reach.

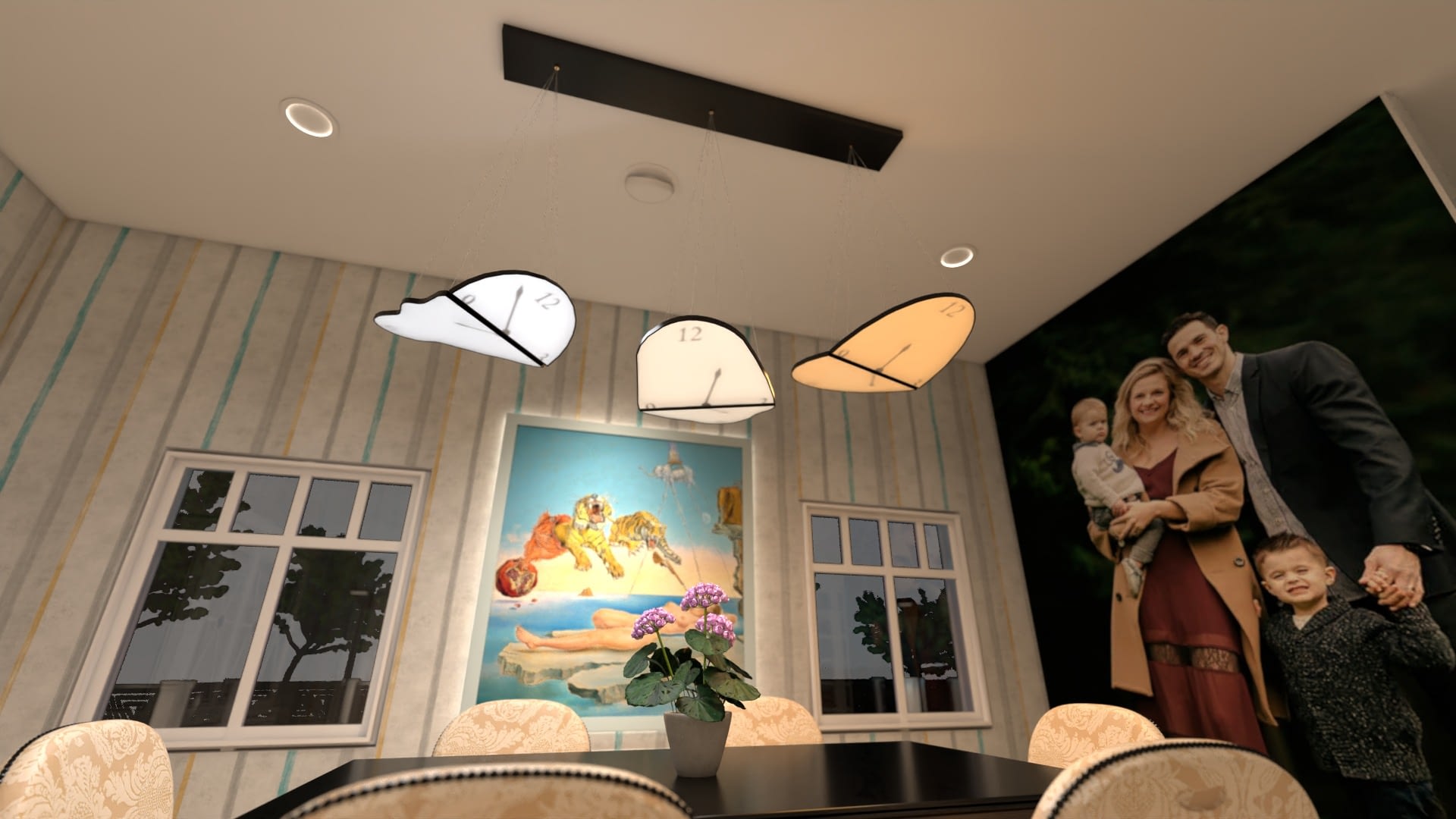

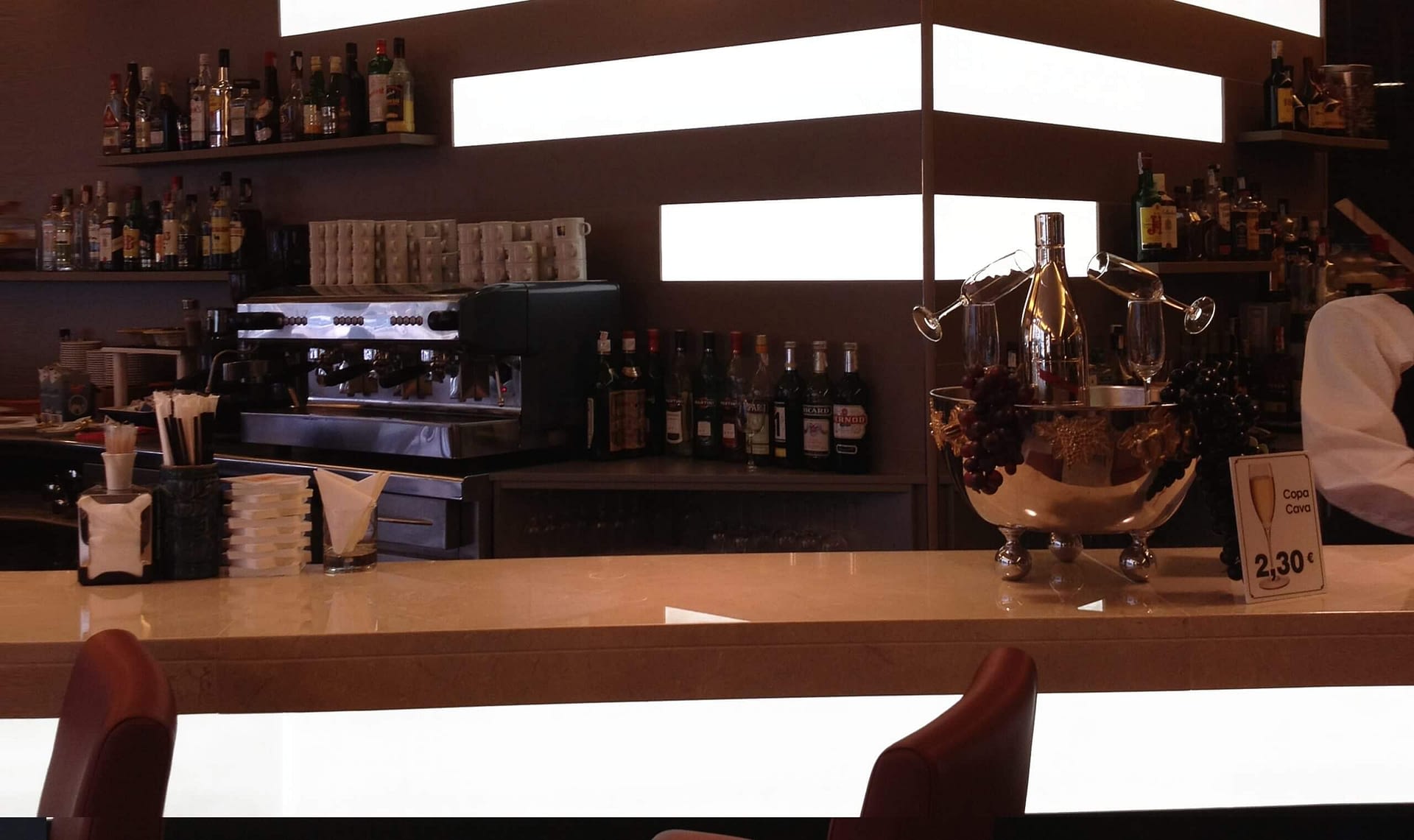

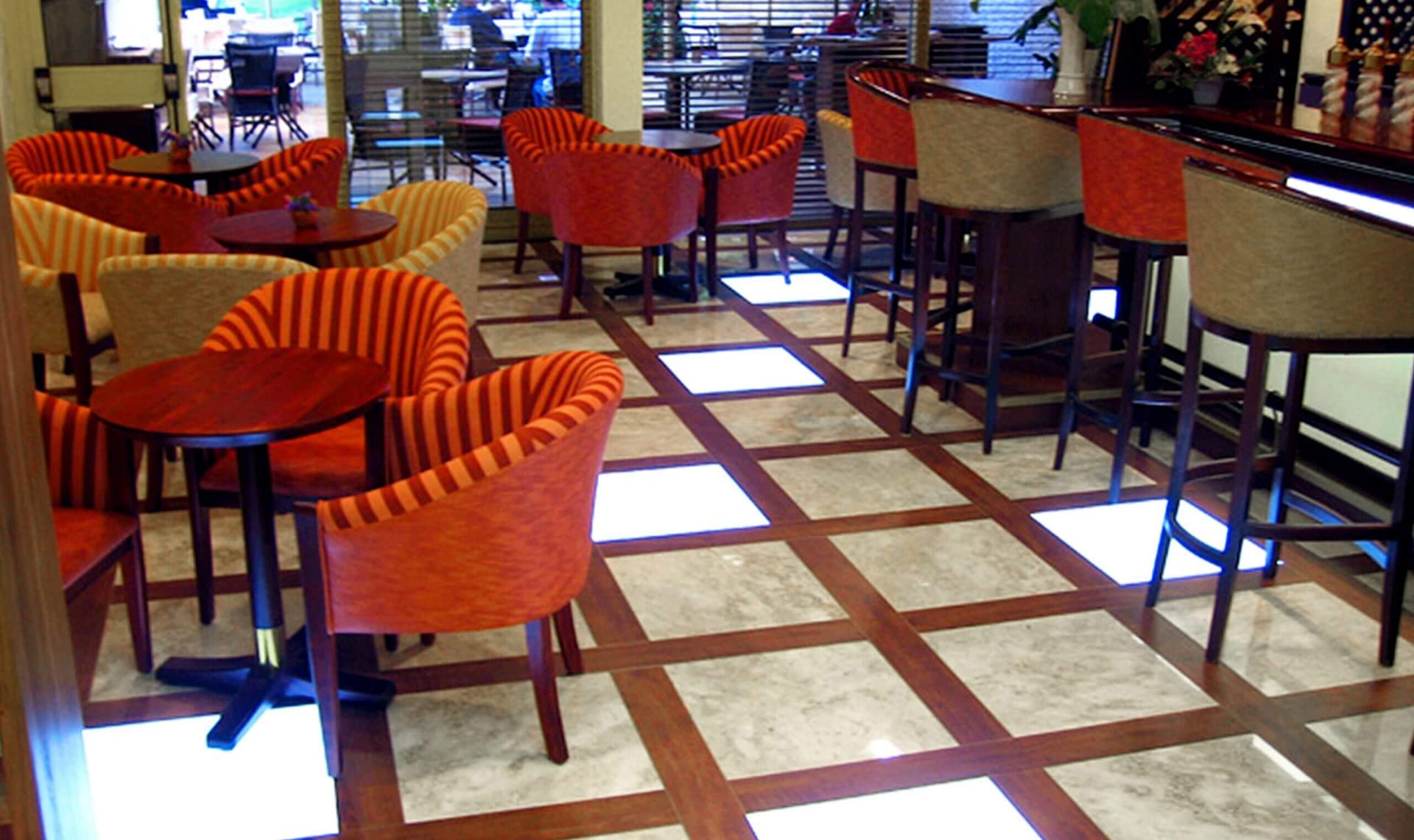

LED backlight panel lumisheet custom size and shapes

Square led panel light, rounded edges, circular, semicircular, triangle led panels, etc. And LED light panel with custom size: 600x600mm, 1200x600mm, 2x2, 2x4...

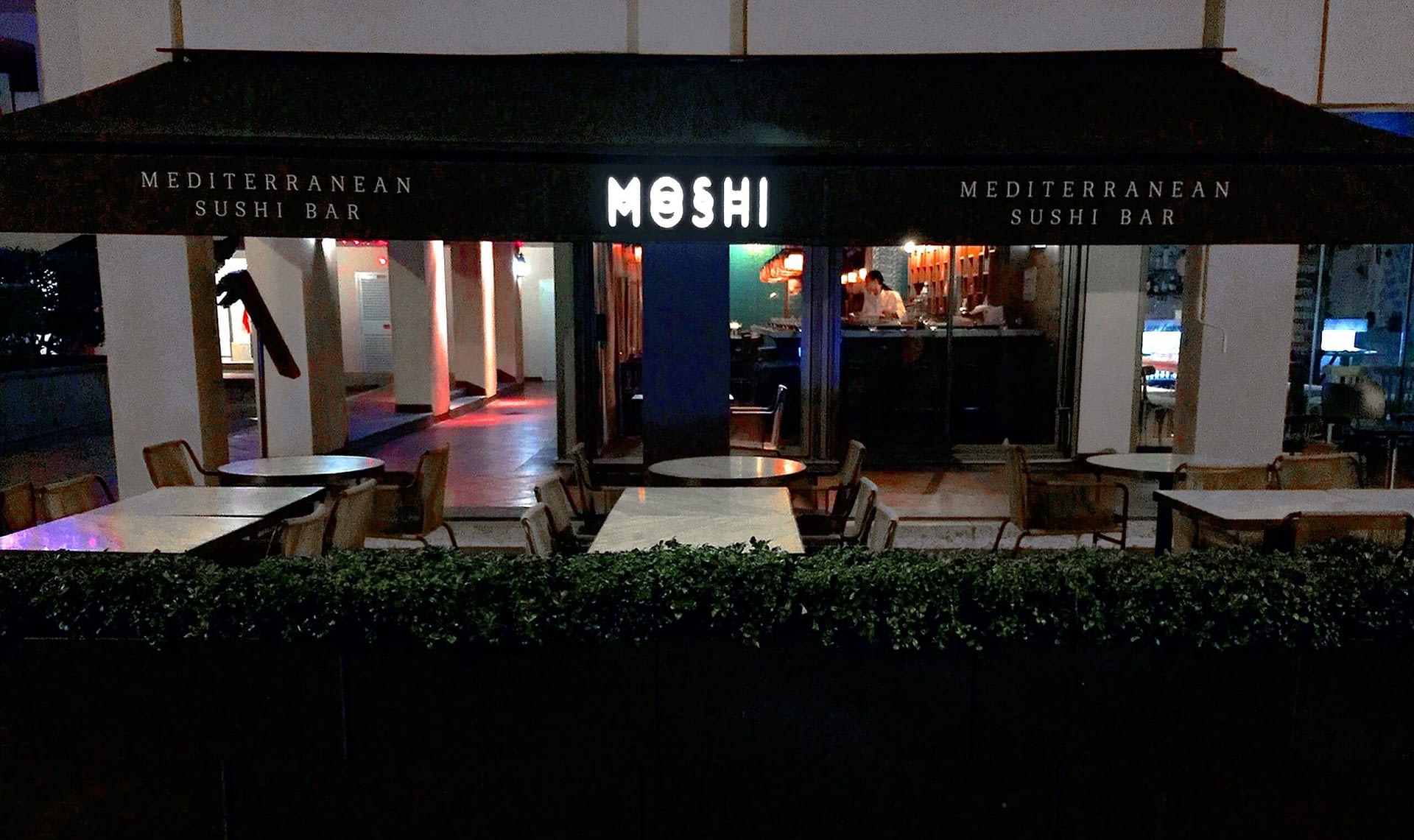

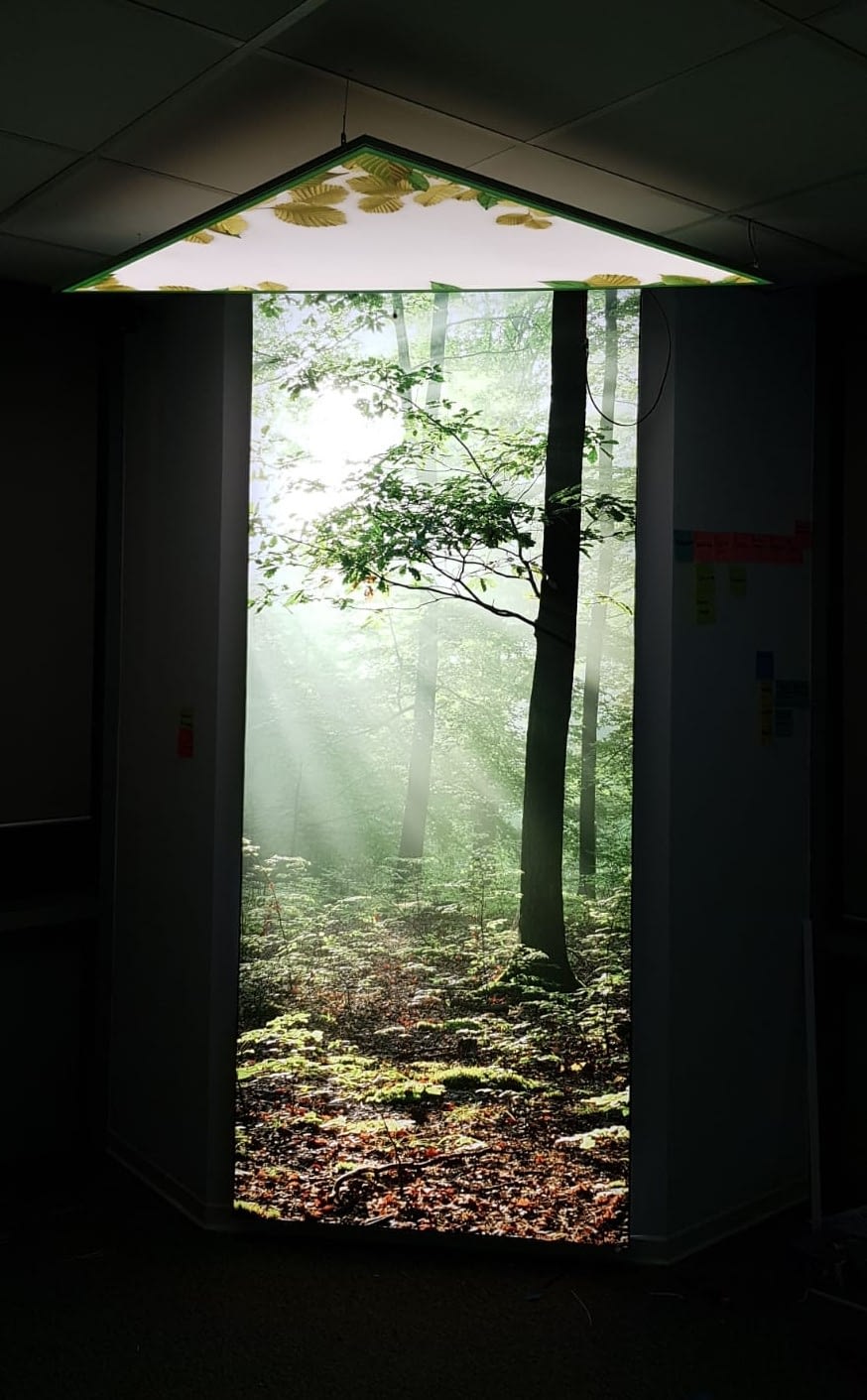

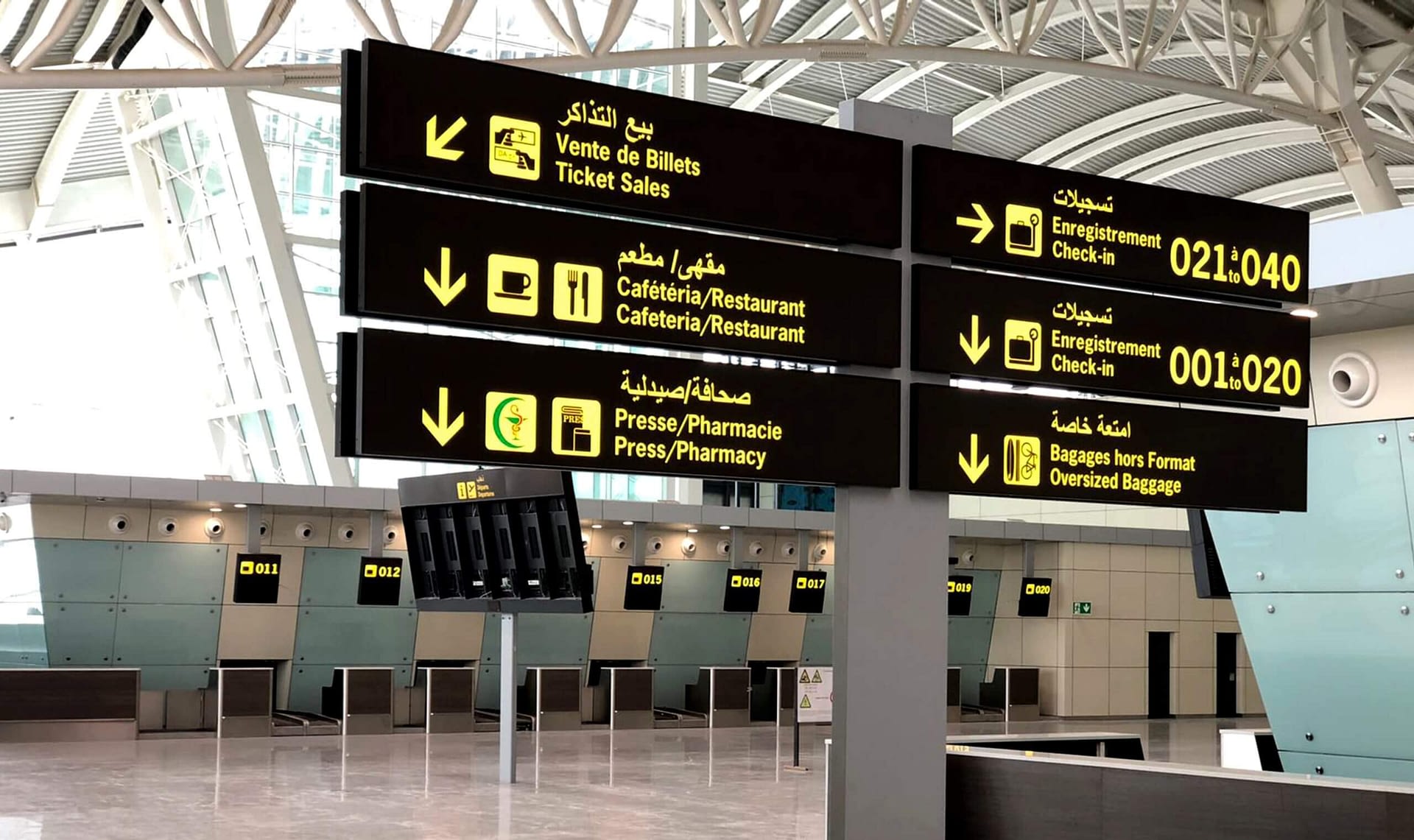

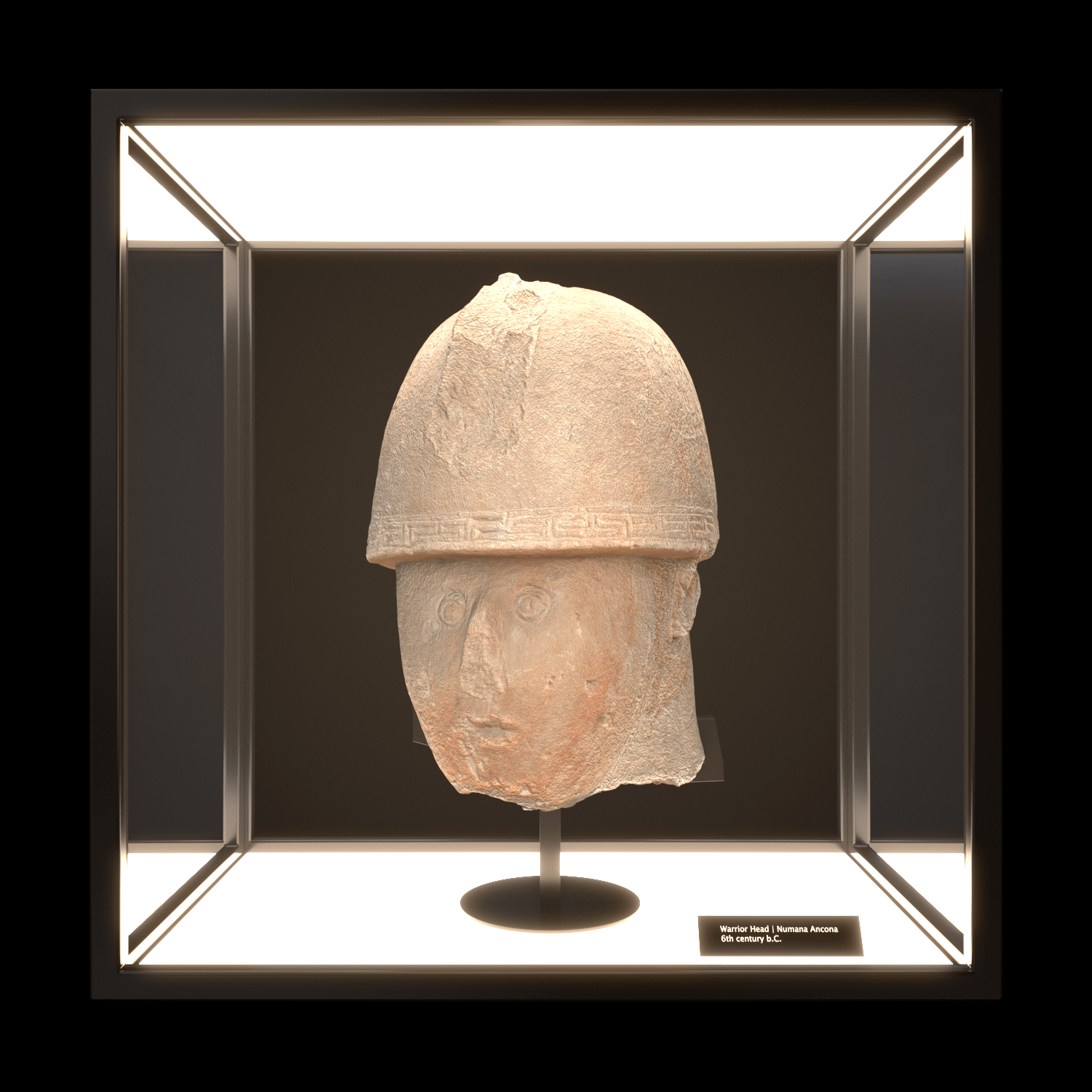

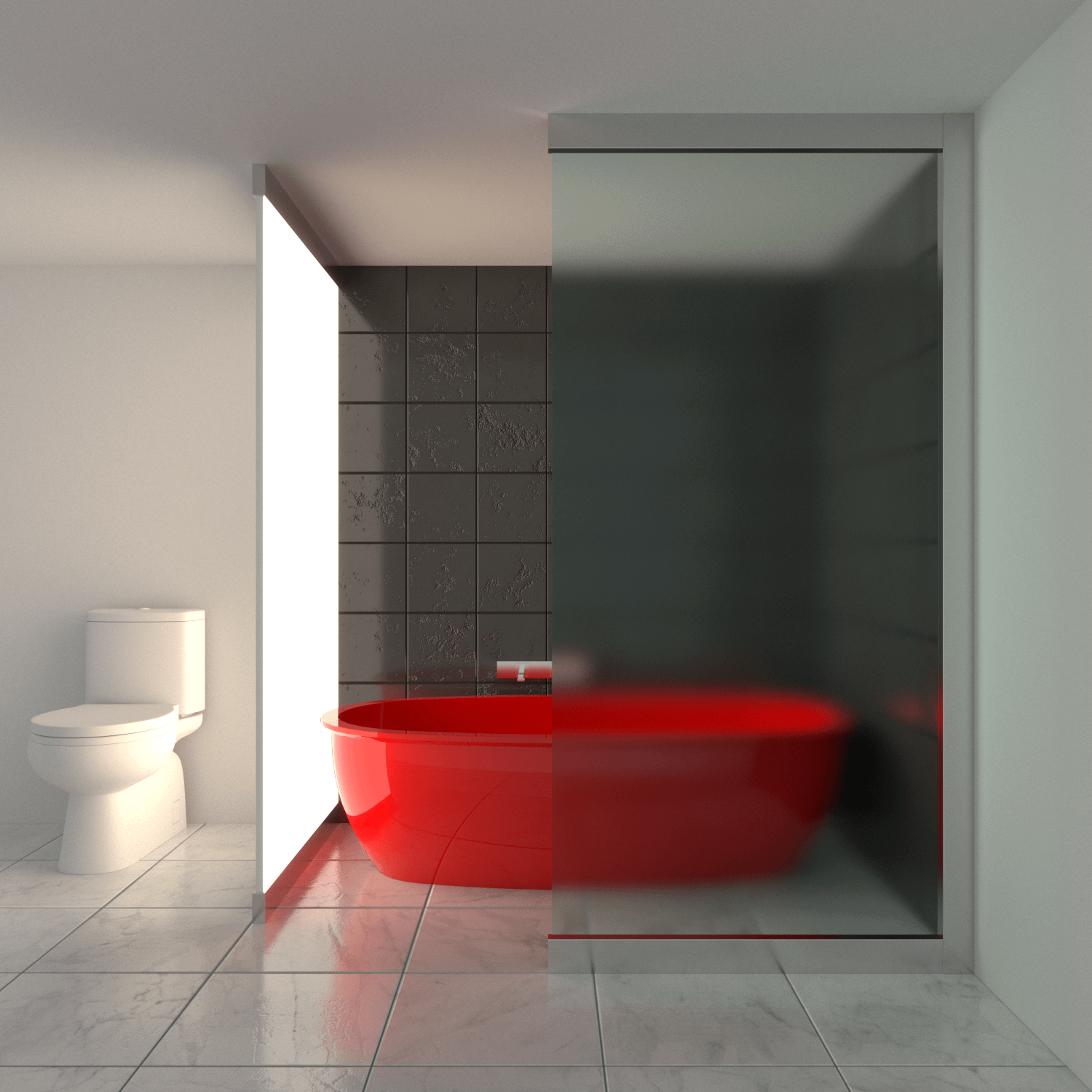

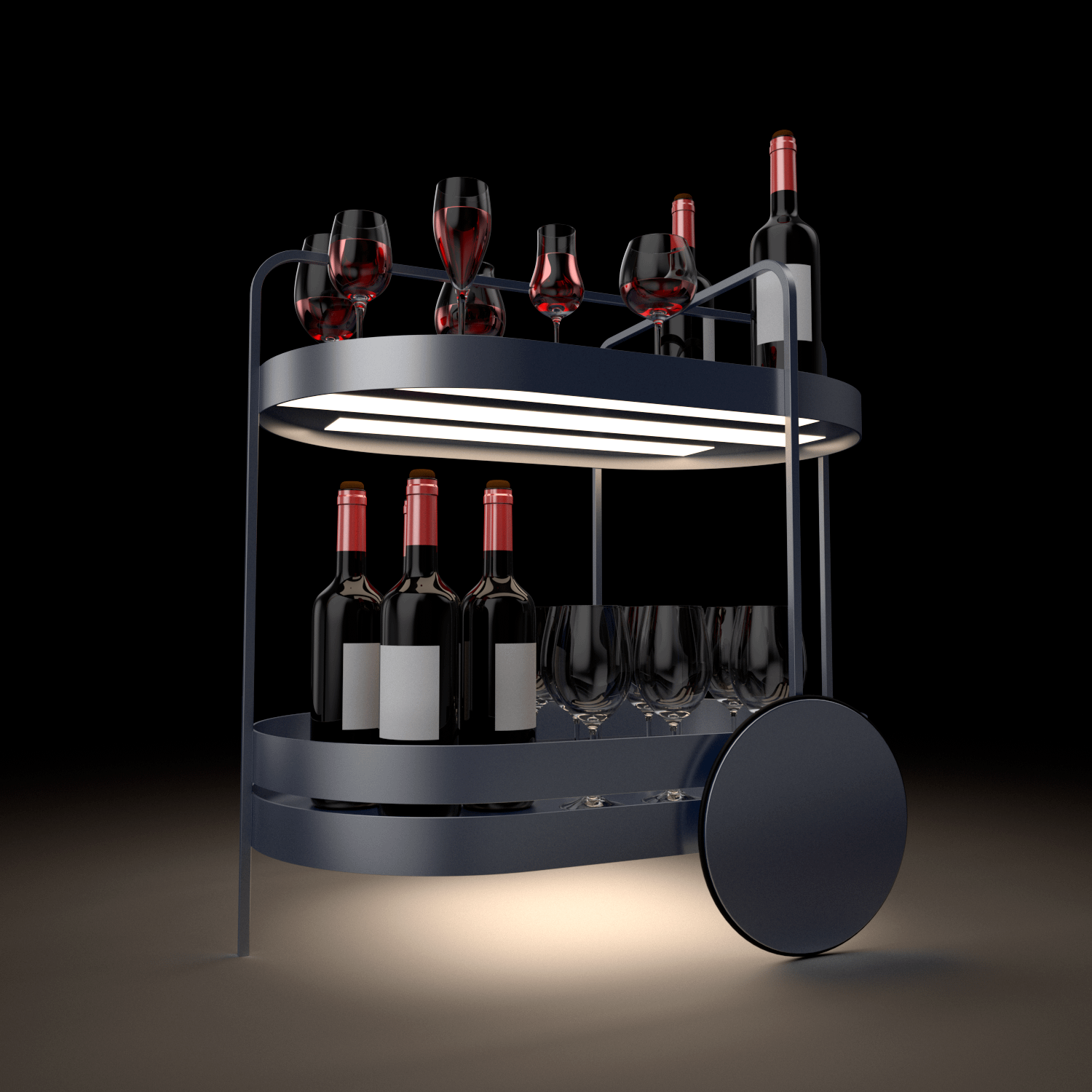

This is how our projects shine

Variety of LED panels technologies

Luxpanel / Luxpanel +

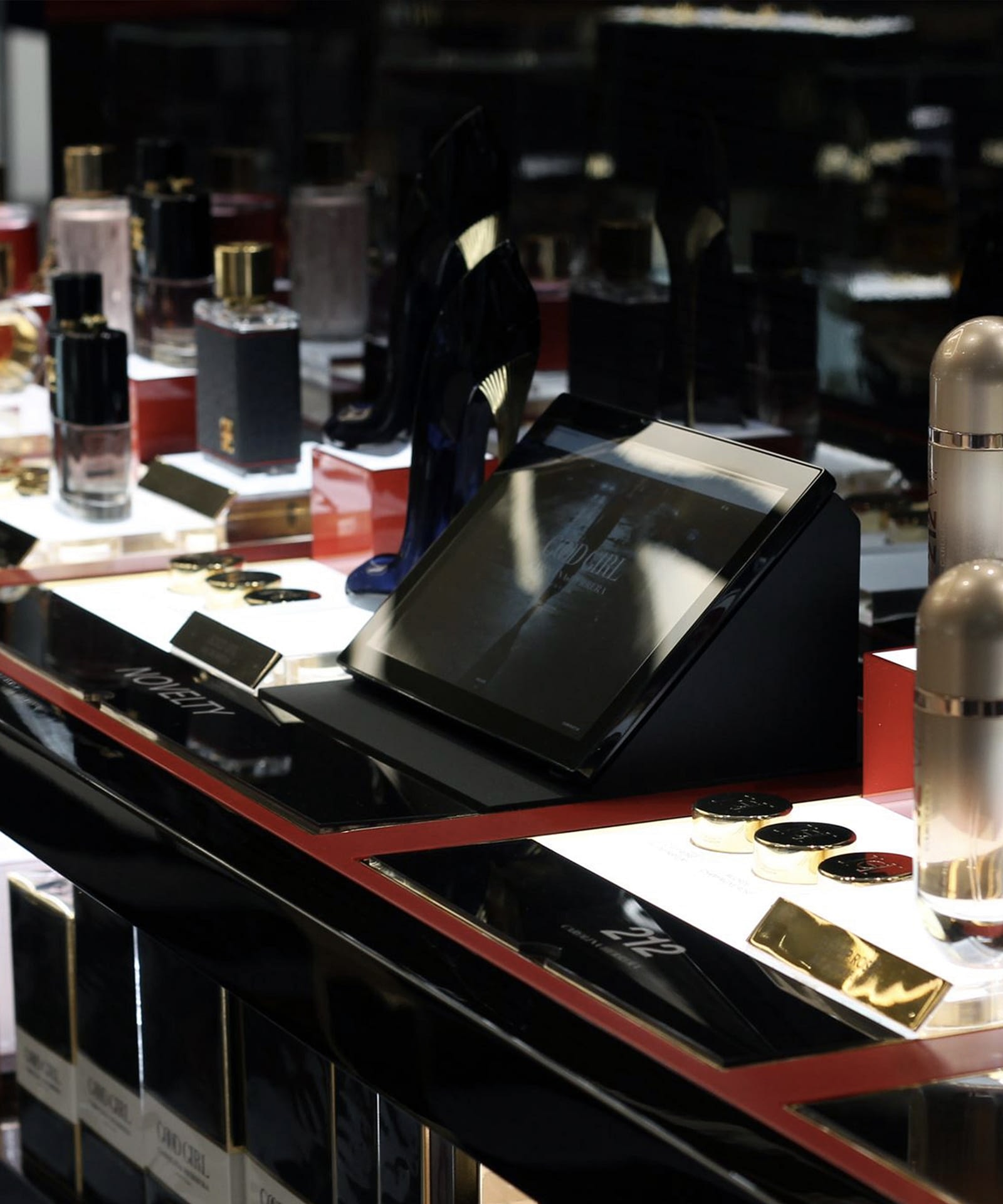

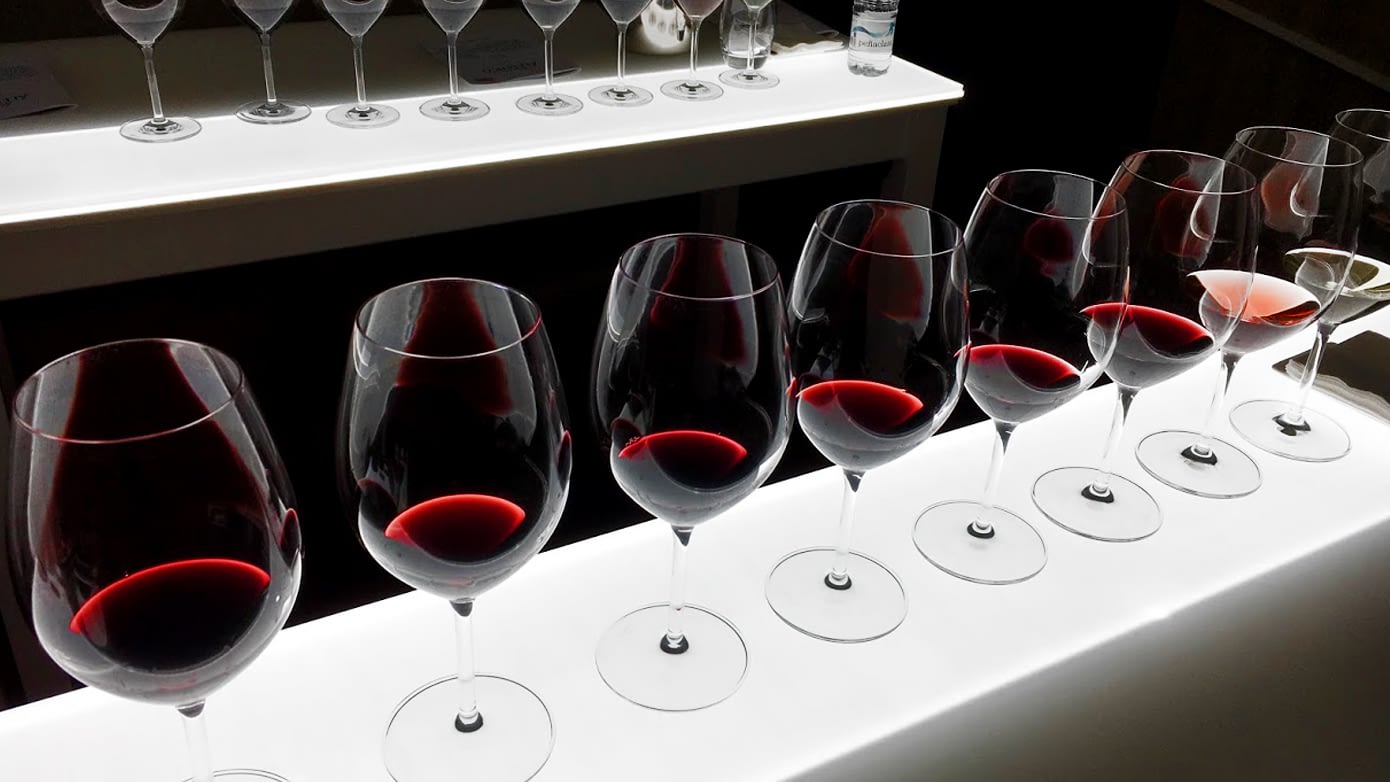

LED backlight panels. They do not transmit heat thanks to its low consumption, so this backlit panel is ideal for displaying cosmetic products, perfumes, food... an all temperatures in led panel: 2700K, 3000K, 4000K, 5000K, 6000k...

Thickness

7,6/9,6 mm

Voltage

24 V

Consumption

Luxpanel: 15W/m Luxpanel+: 23W/m

LED Color

2.7/3/4/5/6.000K

Size

Max 3000x1500mm

Illum. faces

1-2

CRI

> 85%

Luxpanel 5V

luxpanel

Thickness

8 mm

Voltage

5 V

Consumption

4,5 W/m

LED Color

4/6.000 K

Size

Max 3000x1500mm

Illum. faces

1-2

CRI

> 80%

Luxpanel Form

luxpanel form

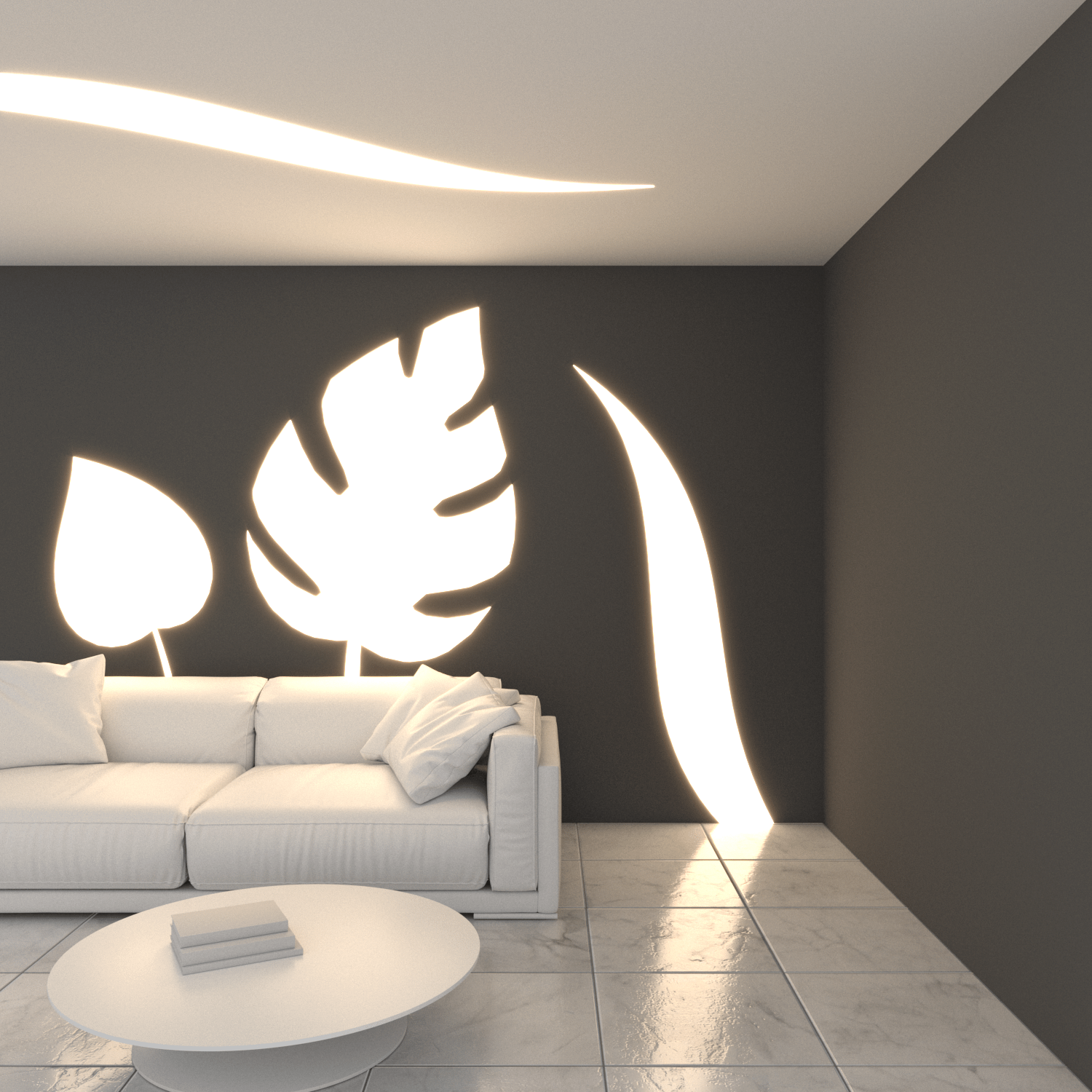

Shaped light panel in white or RGB. Square led panel light, rounded edges, semicircular, circular, triangular, etc. Whatever you imagine!

Thickness

7,6/8/9,6 mm

Voltage

24 V

Consumption

15 W/m

LED Color

2.7/3/4/5/6.000K

Size

Max 3000x1500mm

Illum. faces

1-2

CRI

> 85%

Luxpanel RGB

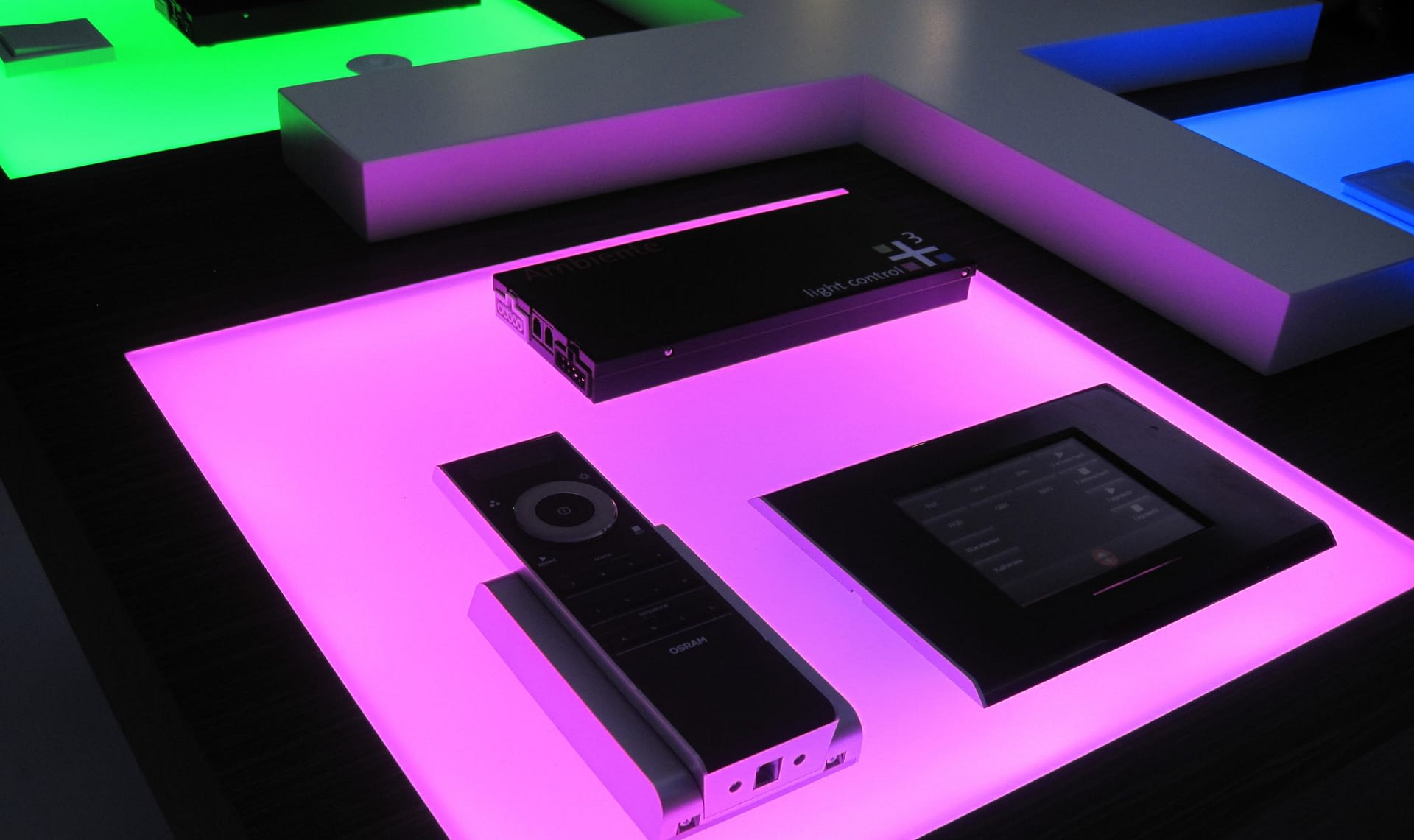

Customized RGB LED panel light. The overall color of the shape can be selected with a controller. Among the most common uses is indicated for interior design, decoration, creation of color environments.

Thickness

8 mm

Voltage

12 V

Consumption

15 W/m

Size

Max 3000x1500mm

Illum. faces

1-2

Luxpanel CRI100

luxpanel led panel actilum

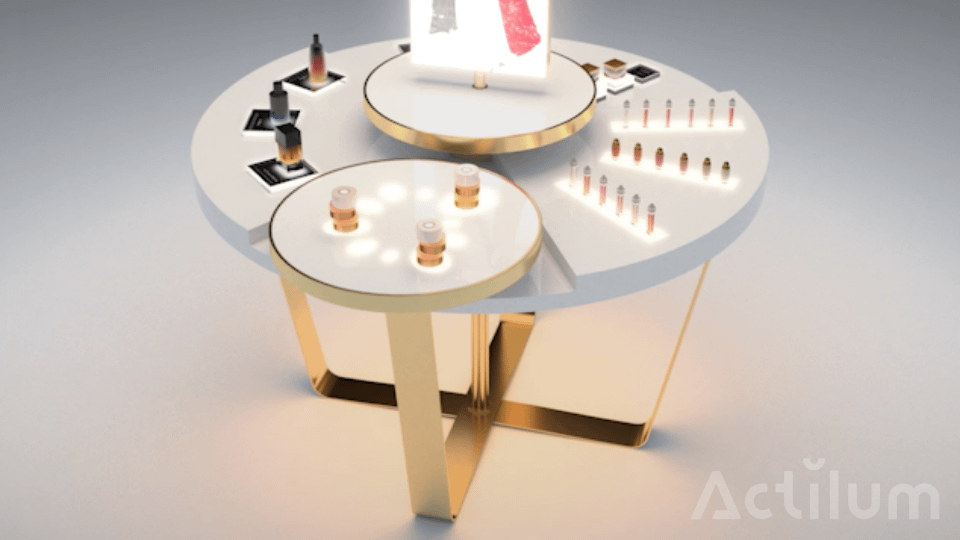

With the CRI100 technology we achieve a maximum representation of the original colors, respecting the design of the product. It can be used for integration into retail fixture, or in architecture and interior design to indicate routes, structures, create environments, decorate...

Thickness

7,6/9,6 mm

Voltage

24 V

Consumption

15 W/m

LED Color

4.000K

Size

Max 3000x1500mm

Illum. faces

1-2

CRI

> 98%

Luxpanel IP

panel led a medida store

Thickness

8 mm

Voltage

12 V

Consumption

15 W/m

Size

Max 3000x1500mm

Illum. faces

1-2

Luxpanel xCCT

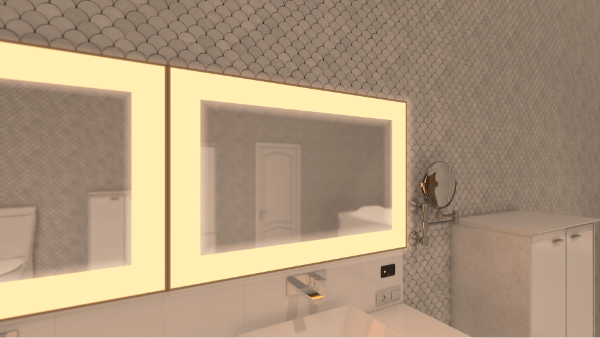

Our daylight led panel with adjustable color temperature. The controller can be used to select a warmer or cooler light by simulating the light range between day and night. Recommended for the professional make-up industry to simulate the effect of light on make-up throughout the day.

Thickness

8 mm

Voltage

12 V

Consumption

Máx. 26W/m

Color LED

Adjustable temperature.
3.000 - 6.200 K
4.000 - 6.200 K
2.700 - 4.000 K

Size

Max 3000x1200mm

Illum. faces

1

CRI

> 85%

dotpanel luxpanel

Anything you can imagine, we can do it.
